Teltonika Gps tracker FMB230 2G M1 Water-resistant 2G tracker with flexible inputs
39,00 €
FMB230 is an IP67 water-resistant 2G tracker. Perfect for use under harsh conditions & high fuel usage machines like construction or agriculture equipment.
FMB230 is an IP67 water-resistant 2G tracker. Perfect for use under harsh conditions & high fuel usage machines like construction or agriculture equipment.

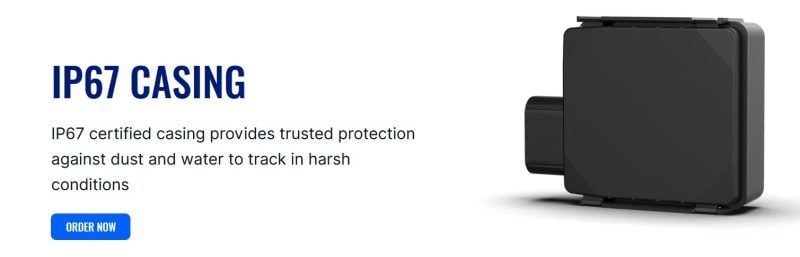

Protection against dust and water
Robust IP67-rated casing provides trusted protection against dust and resistance to water
Innovative click-type two-phase closing with no additional tools needed
Standard and U-type cable options available to ensure easy and fast installation
FMC234 is water-resistant 4G LTE Cat 1 tracker with high-capacity battery. Ideal for fleet management.
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
33 tracking channels
99 acquisition channels
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Technology
GSM 2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
10 – 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption
At 12V < 2.5 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 5.5 mA (Online Deep Sleep)
At 12V < 18,5 mA (GPS Sleep)
At 12V < 34 mA (nominal with no load)
Specification 4.0 + LE
Supported peripherals
Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Dimensions
70,5 x 67,0 x 25,6 mm (L x W x H)
85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Weight 75 g
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating temperature (with battery) -20 °C to +60 °C
Storage temperature (with battery) -20 °C to +45 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impuls Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter Inputs 1
1-Wire 1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM or eSIM
Memory 128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Regulatory
CE/RED, E-mark, RoHS, REACH, Anatel
