FMC 880 4G Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker 4G M1 2G

It has a powerful antenna and you can place it under the hood of the car and can be connected directly to the vehicle battery.

IMPROVED GNSS TRACKING ACCURACY

• Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix.

FAST INSTALLATION

• Virtually anyone can mount the device in 5 minutes or less directly on a car battery.

ROBUST CASING

• IP65-rated casing is designed to withstand poor weather conditions;

EXTENDED PRODUCT USAGE SCENARIOS

• Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement;

Properties

• FMC880-QJAB0: Quectel EG915U-EU with AG3335;
• FMC880-QKAB0: Quectel EG915U-LA with AG3335;
• LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH;

Receiver

• L1: 75 channel;
• L5: 60 channel;
• Tracking sensitivity -165 dBM;
• Position Accuracy < 1 m CEP;
• Velocity Accuracy < 0.1 m/s (within +/- 15% error);
• Hot start < 1 s;
• Warm start < 24 s;
• Cold start < 35 s;
• 2G bands;
• GSM: B2/B3/B5/B8;
• 4G LTE Cat M1 bands;
• FMC880-QJAB0:
• LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28;
• FMC880-QKAB0:
• LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66;

Data transfer

• LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL);
• GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL);

Transmit power

• Class 5 for GSM850/900: 30±5dBM;
• Class 3 for GSM1800/1900: 29±5dBM;
• Class 3 for LTE-FDD: 26±5dBM;
• Bluetooth: 5.54±2dBM;
• Bluetooth LE: -4.26±2dBM;
• Data support
• SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT);

Power

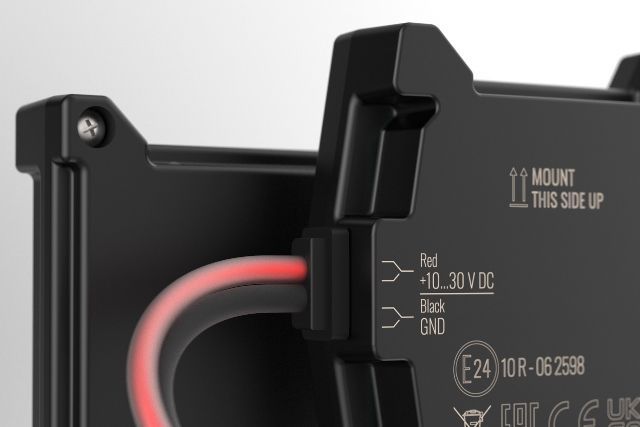

• 10–30 V DC with over voltage and reverse polarity protection;
• Internal Back-up battery
• 170 mAh Li-Ion battery, 3.7 V (0.63 Wh);
• Internal fuse 3A, 125V;
• Bluetooth;
• 4.0 + LE;
• Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support;
• Dimensions 92.5*57.6*14 mm;
• Weight 63 g.;
• Interface
• GNSS antenna;
• Internal High Gain;
• Cellular antenna;
• Internal High Gain;

USB

• 2.0 USB Micro B;
• LED indication;
• 2 status LED lights;
• Micro-SIM;
• Memory;
• 128MB internal flash memory;
• Operating temperature (without battery) -40 °C to +85 °C;
• Storage temperature (without battery) -40 °C to +85 °C;
• Operating temperature (with battery) 0 °C to +40 °C;
• Storage temperature (with battery) -20 °C to +45 °C;
• Operating humidity 5% to 95% non-condensing;
• IP65;
• Battery charge temperature 0 °C to +45 °C;
• Battery discharge temperature -20 °C to +60 °C;
• -20 °C to +45 °C for 1 month;
• -20 °C to +35 °C for 6 months;

Scenarios

• Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip;

Sleep modes

• GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep;
• Configuration and firmware update;
• FOTA Web, Teltonika Configurator (USB, Bluetooth);

SMS

• Configuration, Events, Debug;
• GPRS commands;
• Configuration, Debug;
• Time Synchronization;
• GNSS, NITZ, NTP;
• Ignition detection;
• Accelerometer, External Power Voltage;

Set of equipment

• GPS tracker Teltonika 4G FMC880;
• Server/SIM card for an additional fee;
• Directions for use in English language;

Warranty: 24 months;

Fast delivery.
