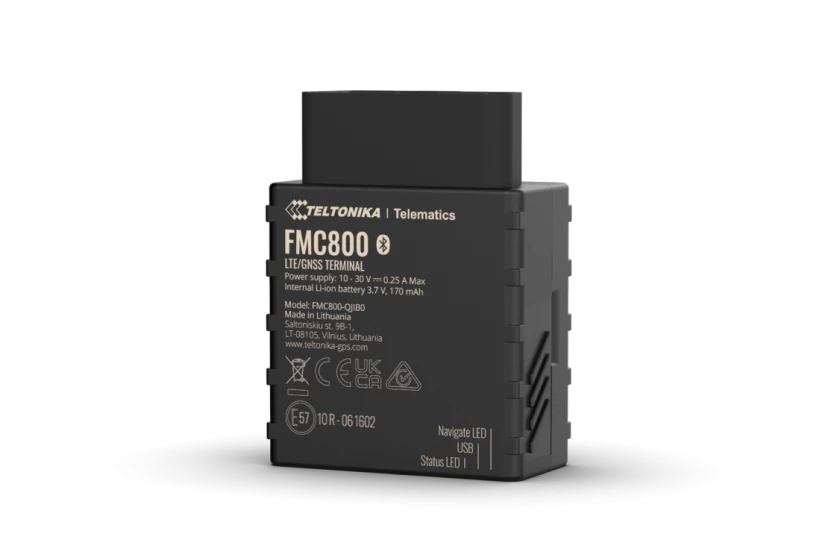

Teltonika Gps tracker FMC800 4G M1 2G Plug & Play tracker with 4G LTE Cat 1 connectivity

FMC800 – an extremely fast and easy installation allows connecting device in a few seconds! 4G Cat 1 device for accurate tracking and monitoring. TELTONIKA FMC800 4G GPS Tracker , the most advanced OBD GPS Tracker device from the leading manufacturer Teltonika, with the ability to read various vehicle information (such as fuel level, any engine errors, temperature, air, etc.) via the CAN BUS! Easy and quick to install in the special OBDII port that all cars have. NO INSTALLATION NEEDED and ready in 1 minute!

Description

FMC800 – an extremely fast and easy installation allows connecting device in a few seconds! 4G Cat 1 device for accurate tracking and monitoring.

Effortless Plug & Play installation

Simply plug the device in OBD-II port and start tracking

Eco driving scenario for all-round better driving

Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Accurate and detailed crash trace data

Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data

Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

PRODUCT SPECIFICATIONS

Module

Name

FMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500

Technology

LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

Receiver

33 channel

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular

2G bands

FMC800-QJIB0: GSM: B2/B3/B5/B8

4G LTE bands

FMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28

Data transfer

LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)

GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)

Data support

SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)

Power

Input voltage range

10 – 30 V DC with overvoltage protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Internal fuse

3A, 125V

Bluetooth® Technology

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions

67,2 x 49,6 x 25 mm (L x W x H)

Weight

63 g

Operating environment

Operating temperature (without battery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Connection

OBDII Socket

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM

Memory

128MB internal flash memory

Features

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (Configuration)

SMS

Configuration, Events, Debug

GPRS commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Ignition detection

Accelerometer, External Power Voltage

Certification & approvals

Regulatory

FMC800-QJIB0: CE / RED, UKCA, E-Mark, RoHS, REACH, Declaration of IMEI assignment,

RCM, CITC
